Ne Gradient Ionosphere indeX (NEGIX)

The NEGIX measures the spatial Ne gradients in the topside ionosphere (Swarm up to GNSS orbit) using GNSS Precise Orbit Determination (POD) measurements using Swarm onboard Langmuir probe (LP) measurements (using 2 Hz data).

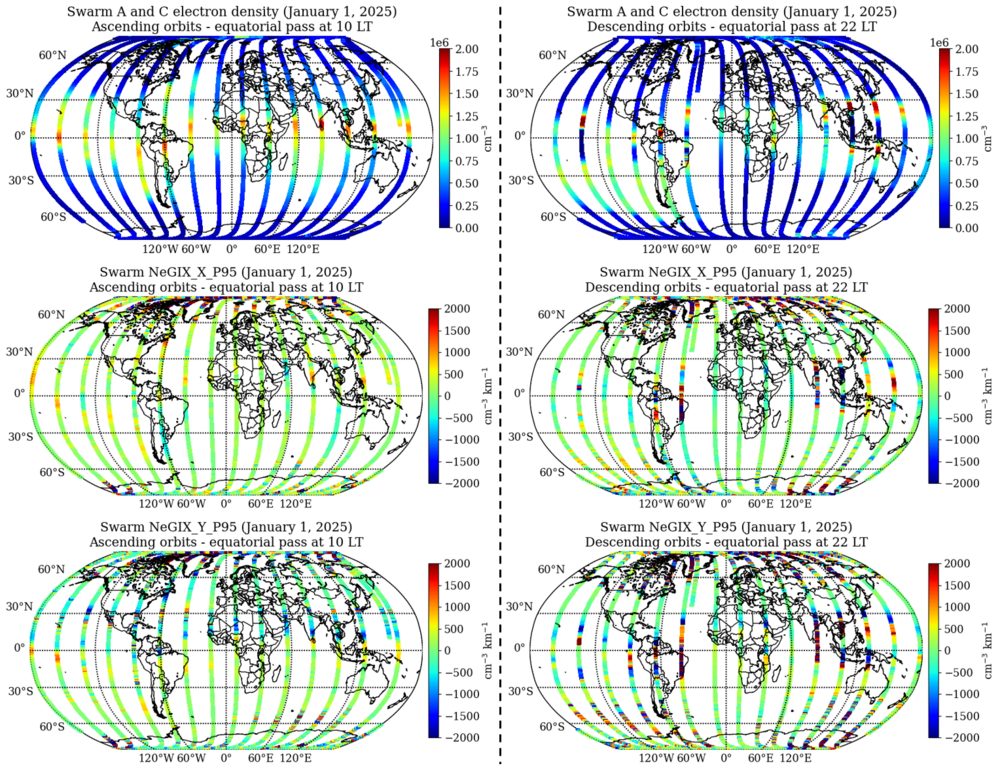

Sample Data

Global NEGIX

Product Specification

One data file in CDF format is produced per day since also daily input electron density files are used for the determination of NEGIX. A spatial resolution of 0.5 degrees in latitude has been adopted to combine measurements and estimate plasma density gradients. This translates to around 8 seconds of transit of the Swarm satellites. Therefore, the expected length of dataset records in one product file is about 10,800.

As follows, a description of the expected output variables is presented:



Name

Description

Type

Column Key

Unit

0

Timestamp

Time in Universal Time

CDF_EPOCH

Timestamp

no unit

1

Longitude

Position of NEGIX (X, Y) in geocentric longitude. Averaged longitude position of the central points (CPs) derived from the combination of  measurements of Swarm A and C.

CDF_DOUBLE

Longitude

deg

2

Latitude

Position of NEGIX (X, Y) in geocentric latitude. Averaged latitude position of the central points (CPs) derived from the combination of  measurements of Swarm A and C.

CDF_DOUBLE

Latitude

deg

3

Distance

Averaged distance value from all dipoles used for the estimation of NEGIX values

CDF_DOUBLE

Distance

m

4

Azimuth

Averaged azimuth value from all dipoles used for the estimation of NEGIX values

CDF_DOUBLE

Azimuth

deg

5

NEGIX X

Mean value of NEGIX for the West-East component

CDF_DOUBLE

Negix_X

e cm-3 m-1

6

NEGIX X Sigma

Standard deviation value of NEGIX for the West-East component

CDF_DOUBLE

Negix_X_Sigma

e cm-3 m-1

7

NEGIX X P95

95-percentile value of NEGIX for the West-East component

CDF_DOUBLE

Negix_X_P95

e cm-3 m-1

8

NEGIX Y

Mean value of NEGIX for the South-North component

CDF_DOUBLE

Negix_Y

e cm-3 m-1

9

NEGIX Y Sigma

Standard deviation value of NEGIX for the South-North component

CDF_DOUBLE

Negix_Y_Sigma

e cm-3 m-1

10

NEGIX Y P95

95-percentile value of NEGIX for the South-North component

CDF_DOUBLE

Negix_Y_P95

e cm-3 m-1

11

NEGIX Total

Total vector value of NEGIX, derived from the mean West-East and South-North components

CDF_DOUBLE

Negix_Total

e cm-3 m-1

12

NEGIX Sigma

Vector value of the standard deviation of NEGIX, derived from the standard deviation values of West-East and South-North components

CDF_DOUBLE

Negix_Sigma

e cm-3 m-1

13

NEGIX P95

Vector value of the 95-percentile of NEGIX, derived from the 95-percentile values of West-East and South-North components

CDF_DOUBLE

Negix_P95

e cm-3 m-1

14

N measurements

Number of elements for a data record from which NEGIX is determined

CDF_UINT2

N_Measurements

no unit

15

Flag NEGIX

Flags characterizing the dispersion of  gradient values that are used to compute the total vector

CDF_UINT1

Flag_Negix

no unit

16

Orbit label

Value defining whether the magnitude belongs to an ascending or descending orbit of the Swarm satellites

CDF_UINT1

Orbit_Label

no unit

Sample data can be found in the SWARM archive.
