TEC Gradient Ionosphere indeX (TEGIX)

The TEGIX measures spatial TEC gradients in the topside ionosphere (Swarm up to GNSS orbit) using GNSS Precise Orbit Determination (POD) measurements using Swarm onboard Langmuir probe (LP) measurements (using 2 Hz data).

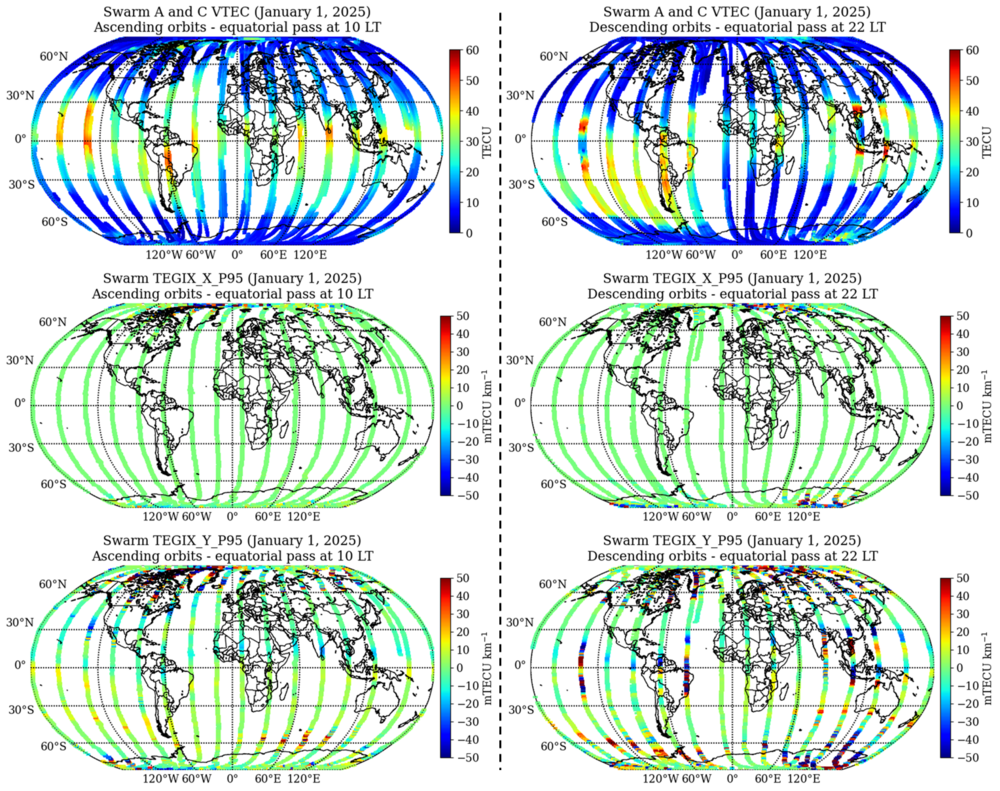

Sample Data

Global Swarm TEGIX

Product description

One data file in CDF format is produced per day since also daily Swarm TEC datafiles are used for the determination of TEGIX. A spatial resolution of 0.5 degrees in latitude has been adopted to combine measurements and estimate plasma density gradients. This translates to around 8 seconds of transit of the Swarm satellites. Therefore, the expected length of dataset records in one product file is about 10,800. As follows, a description of the output variables is presented:



Name

Description

Type

Column Key

Unit

0

Timestamp

Time in Universal Time

CDF_EPOCH

Timestamp

no unit

1

Longitude Swarm

Averaged geocentric longitude of the Swarm satellites for all combined measurements for a certain epoch

CDF_DOUBLE

Longitude_Swarm

deg

2

Latitude Swarm

Averaged geocentric latitude of the Swarm satellites for all combined measurements for a certain epoch

CDF_DOUBLE

Latitude_Swarm

deg

3

Longitude IPPs

Position of TEGIX (X, Y) in geocentric longitude. Averaged longitude position of the central points (CPs) derived from the combination of VTEC measurements of Swarm A and C.

CDF_DOUBLE

Longitude_IPPs

deg

4

Latitude IPPs

Position of TEGIX (X, Y) in geocentric latitude. Averaged latitude position of the central points (CPs) derived from the combination of VTEC measurements of Swarm A and C.

CDF_DOUBLE

Latitude_IPPs

deg

5

Distance

Averaged distance value from all dipoles used for the estimation of TEGIX values

CDF_DOUBLE

Distance

m

6

Azimuth

Averaged azimuth value from all dipoles used for the estimation of TEGIX values

CDF_DOUBLE

Azimuth

deg

7

TEGIX X

Mean value of TEGIX for the West-East component

CDF_DOUBLE

Tegix_X

mTECU m-1

8

TEGIX X Sigma

Standard deviation value of TEGIX for West-East component

CDF_DOUBLE

Tegix_X_Sigma

mTECU m-1

9

TEGIX X P95

95-percentile value of TEGIX for the West-East component

CDF_DOUBLE

Tegix_X_P95

mTECU m-1

10

TEGIX Y

Mean value of TEGIX for the South-North component

CDF_DOUBLE

Tegix_Y

mTECU m-1

11

TEGIX Y Sigma

Standard deviation value of TEGIX for South-North component

CDF_DOUBLE

Tegix_Y_Sigma

mTECU m-1

12

TEGIX Y P95

95-percentile value of TEGIX for the South-North component

CDF_DOUBLE

Tegix_Y_P95

mTECU m-1

13

TEGIX Total

Total vector value of TEGIX derived from combining West-East and South-North components

CDF_DOUBLE

Tegix_Total

mTECU m-1

14

TEGIX Sigma

Vector value of the standard deviation of TEGIX, derived from combining the standard deviation values of West-East and South-North components

CDF_DOUBLE

Tegix_Sigma

mTECU m-1

15

TEGIX P95

Vector value of the 95-percentile of TEGIX, derived from combining the 95-percentile values of West-East and South-North components

CDF_DOUBLE

Tegix_P95

mTECU m-1

16

N measurements

Number of elements for a data record from which TEGIX is determined

CDF_UINT2

N_Measurements

no unit

17

Flag TEGIX

Flags characterizing the dispersion of VTEC-gradient values within a given spatial resolution that are used to compute the total vector

CDF_UINT1

Flag_Tegix

no unit

18

Orbit label

Value defining whether the magnitude belongs to an ascending or descending orbit of the Swarm satellites

CDF_UINT1

Orbit_Label

no unit

Sample data can be found in the SWARM archive.
